$4,650.00
/

Peak Gravel Experience

The ADHX 45 is smooth, stable, and uncommonly durable; when asked, it rips. It’s not easy to create a bike this refined and balanced. We at TIME might have an unfair advantage when designing gravel bikes with our BCS and RTM manufacturing processes, which yield an unparalleled standard of precision and consistency that conventional pre-preg carbon frames cannot match. This distinction is evident in every TIME frame's impeccable, flawless finish. Meticulously crafted to be perfect inside and out, our bikes deliver durability that lets us stand behind the ADHX 45 with the same Lifetime Warranty we offer for all our models.

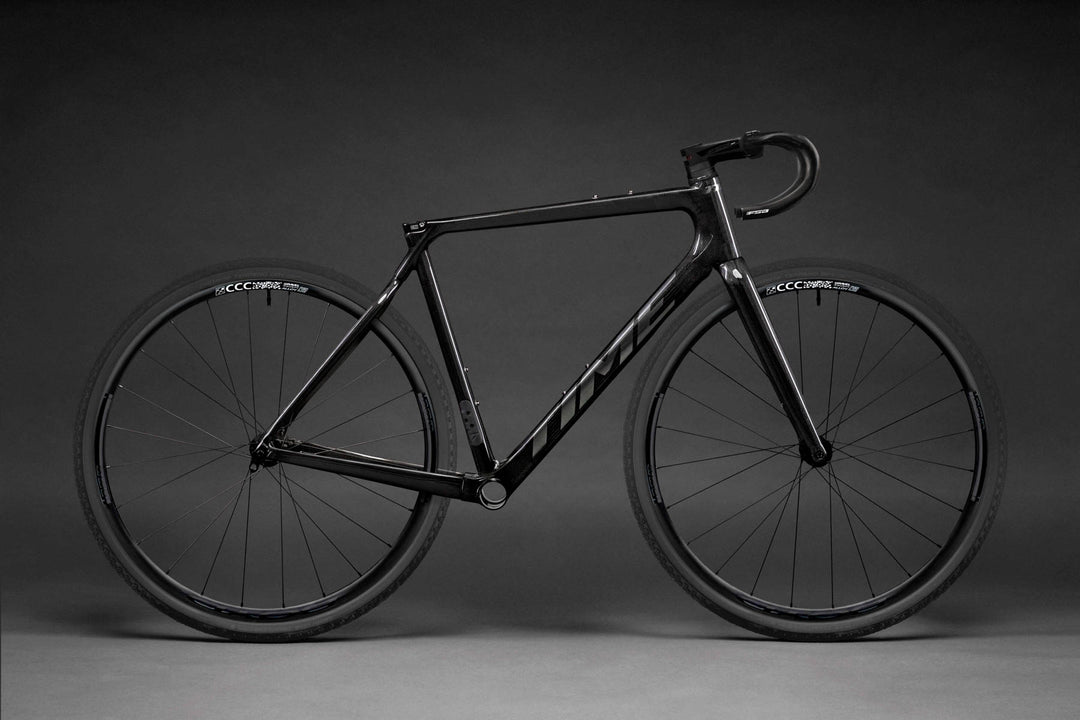

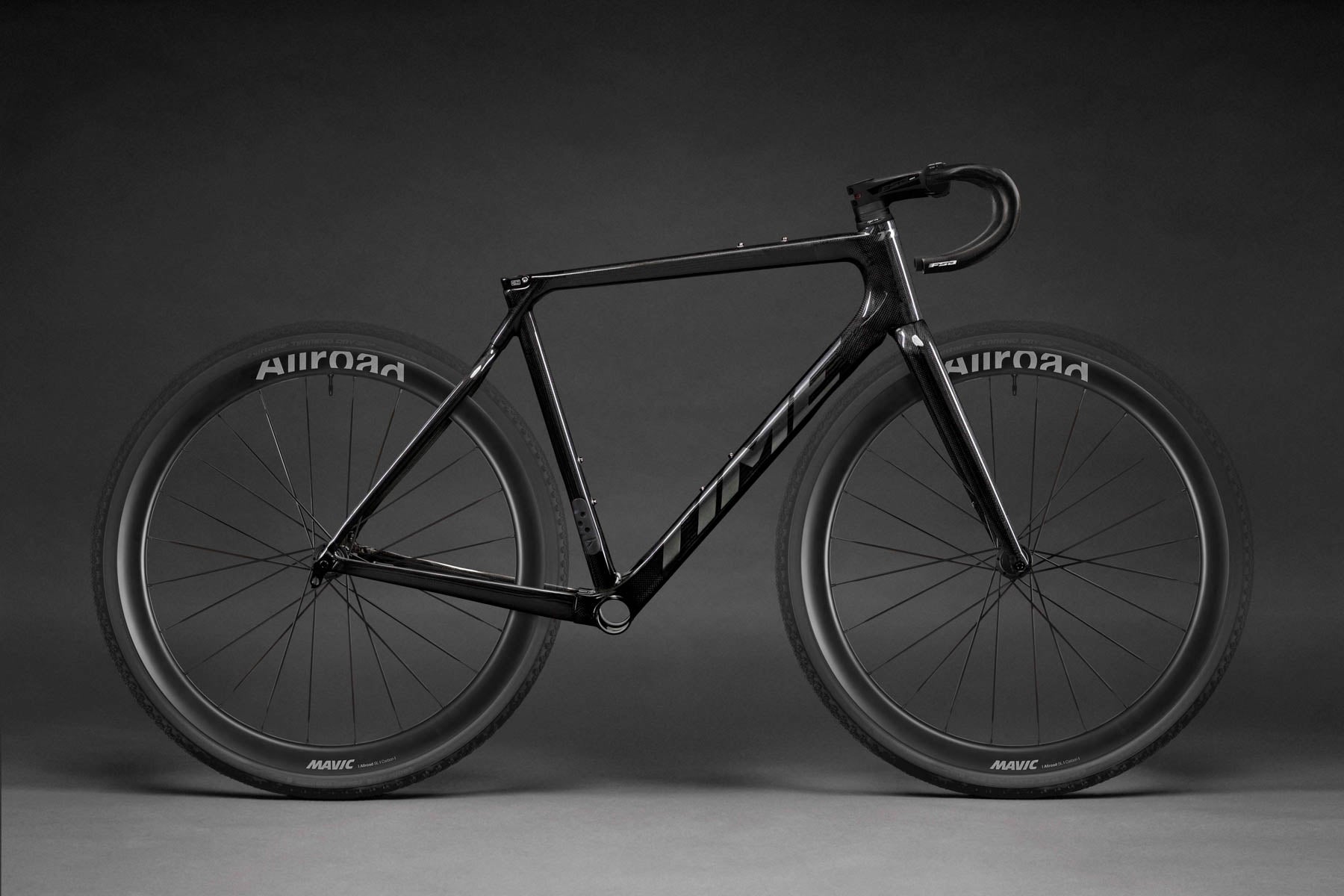

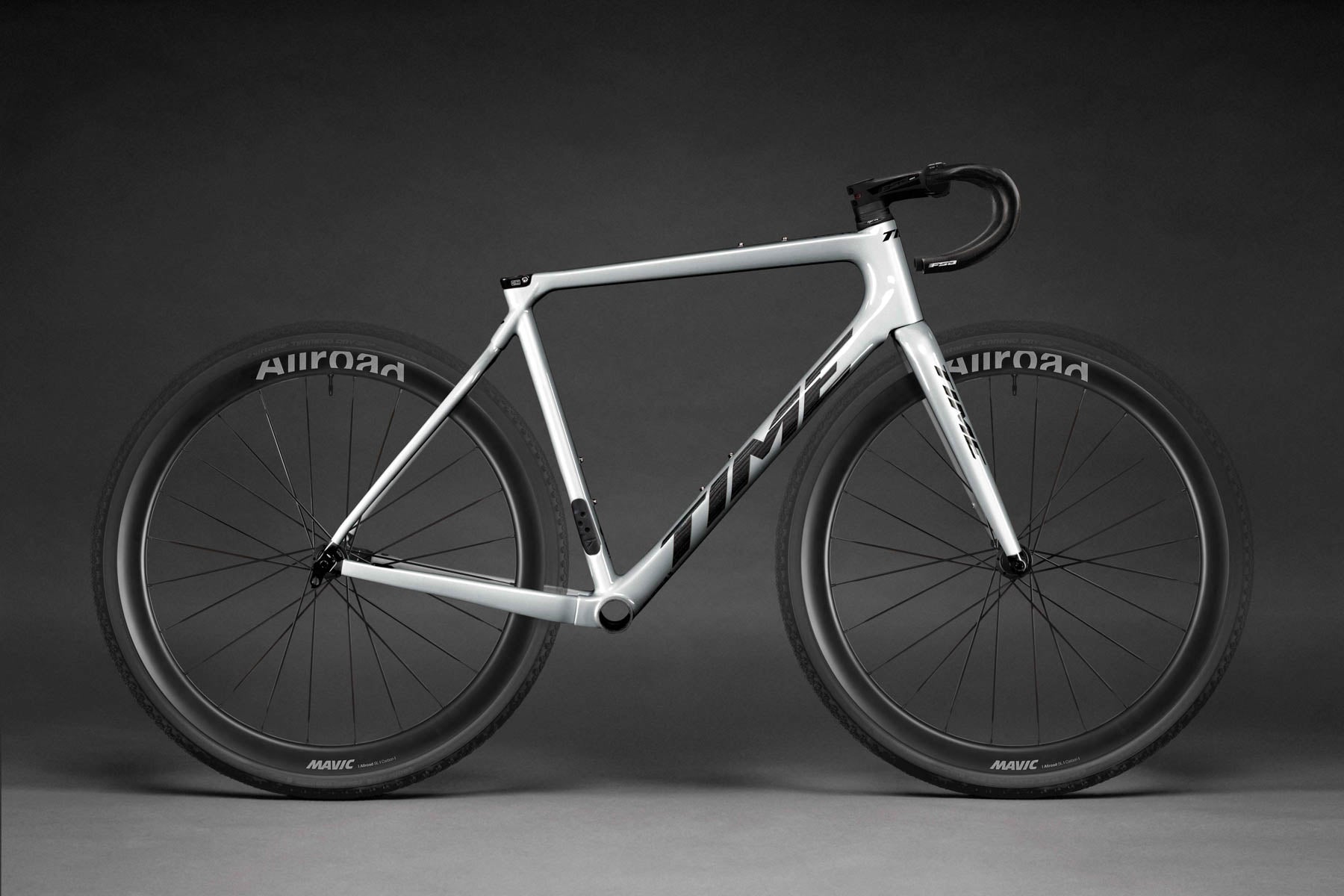

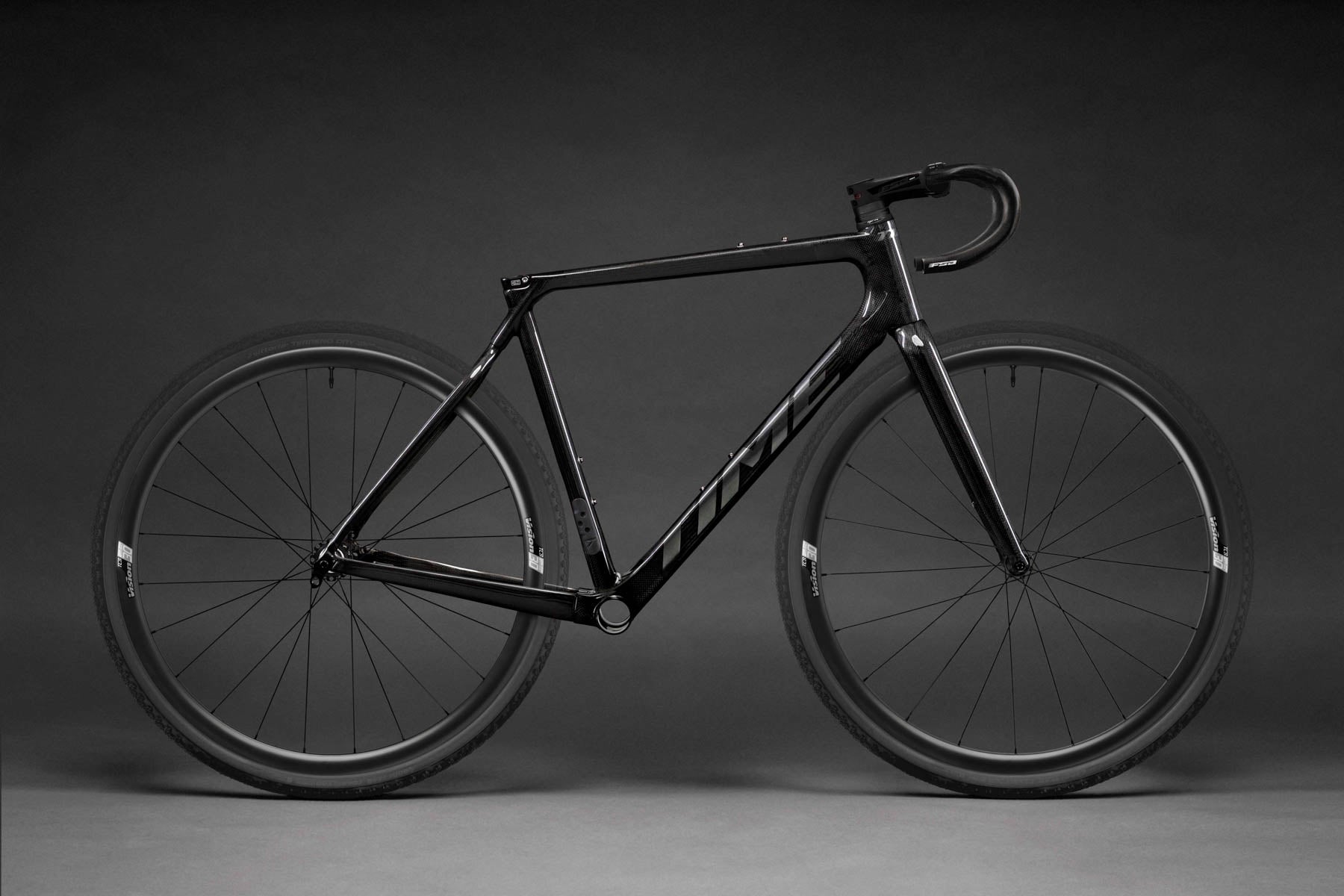

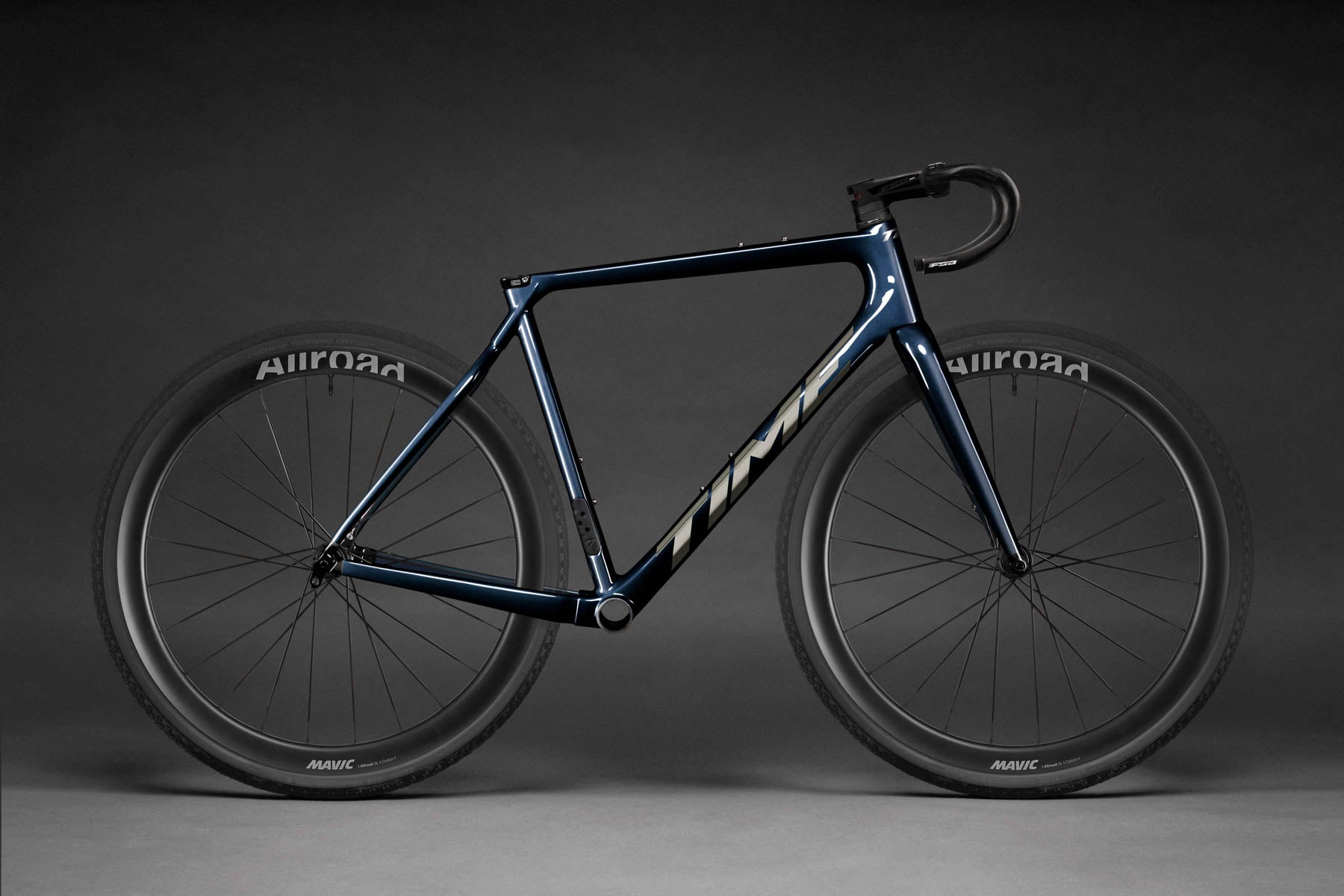

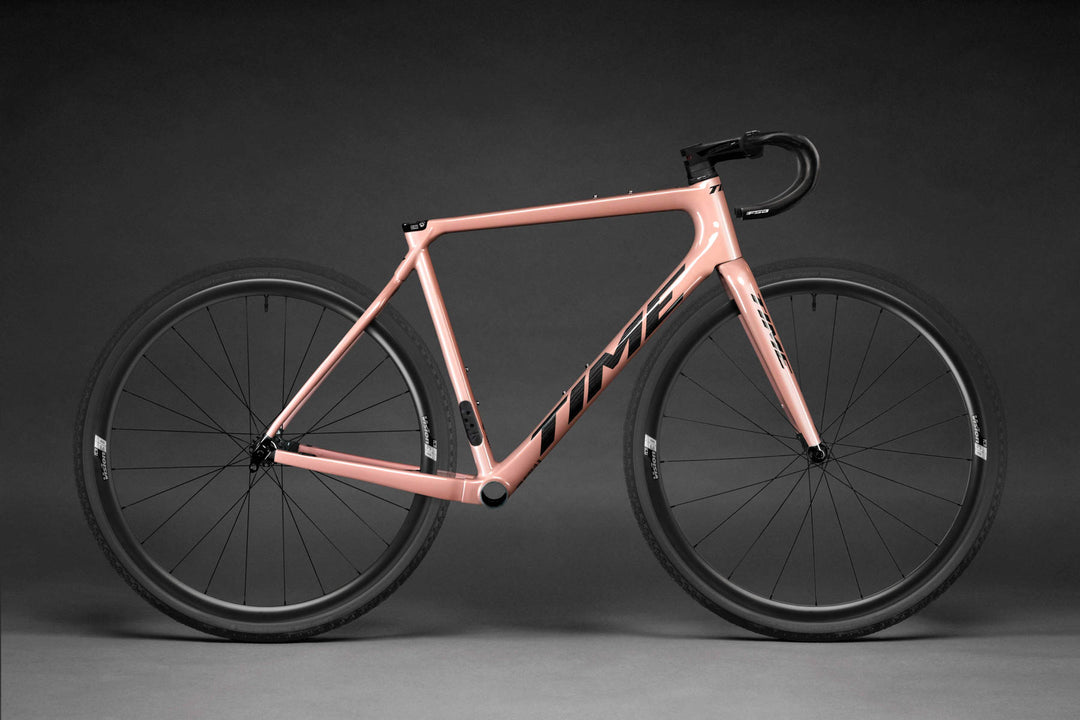

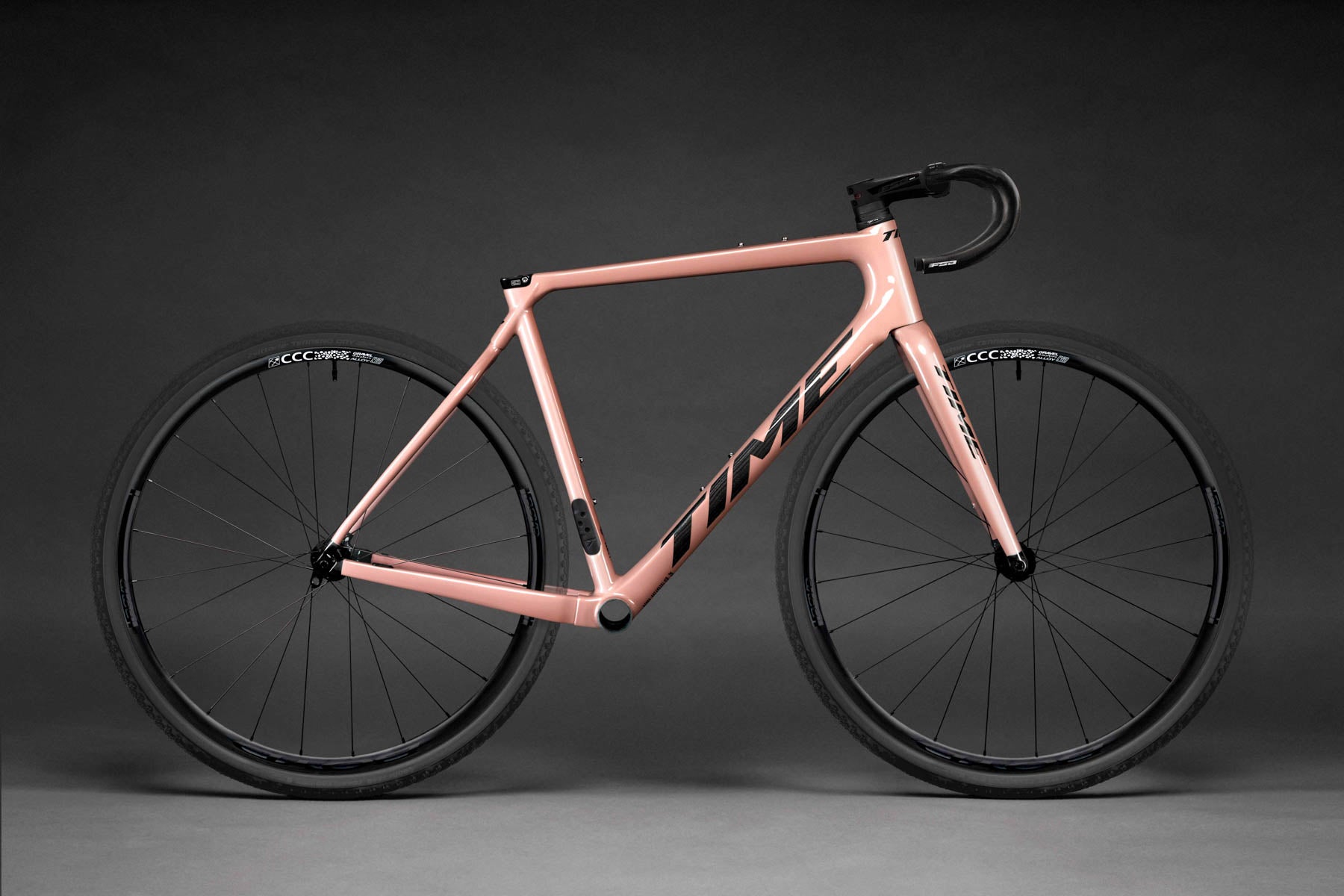

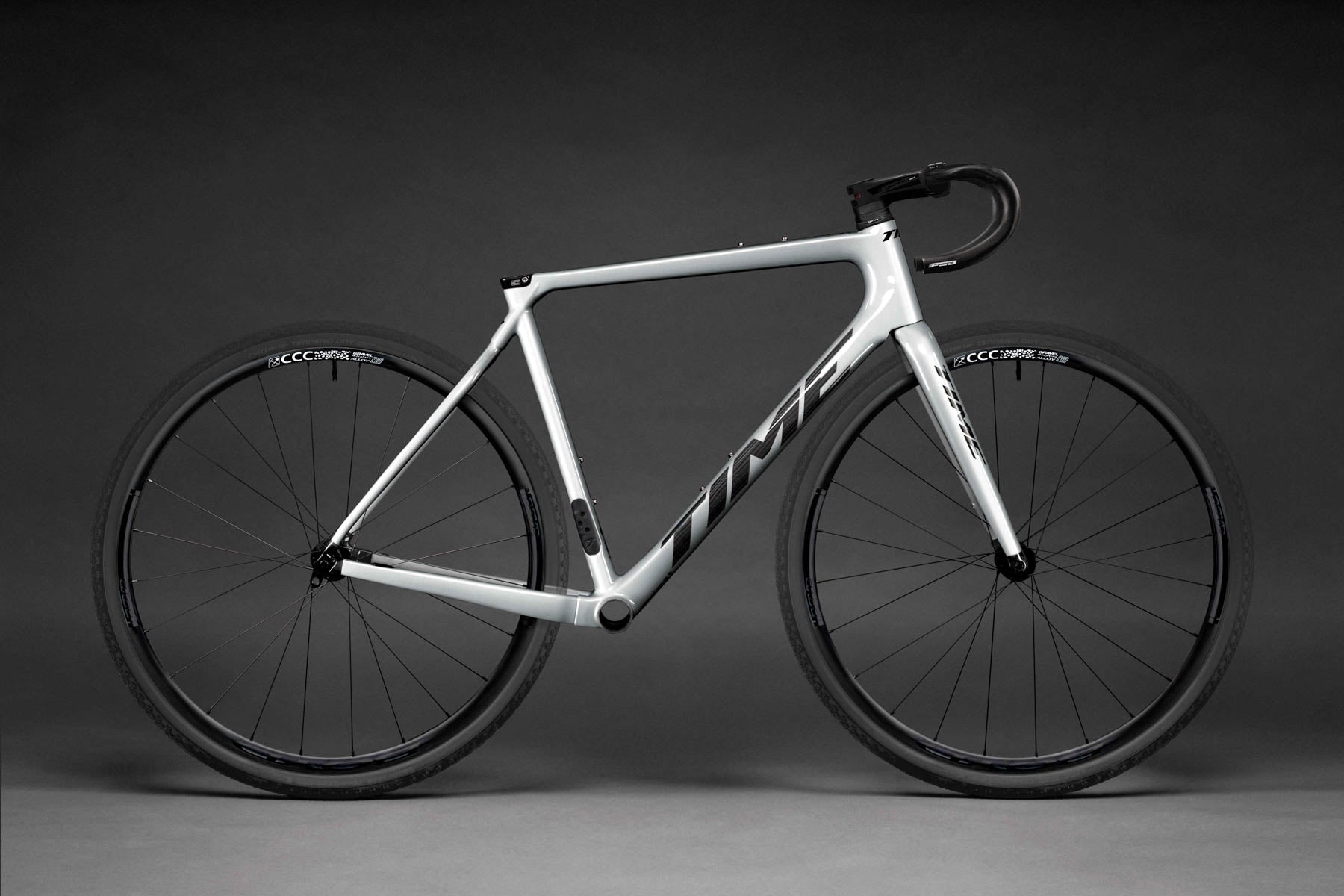

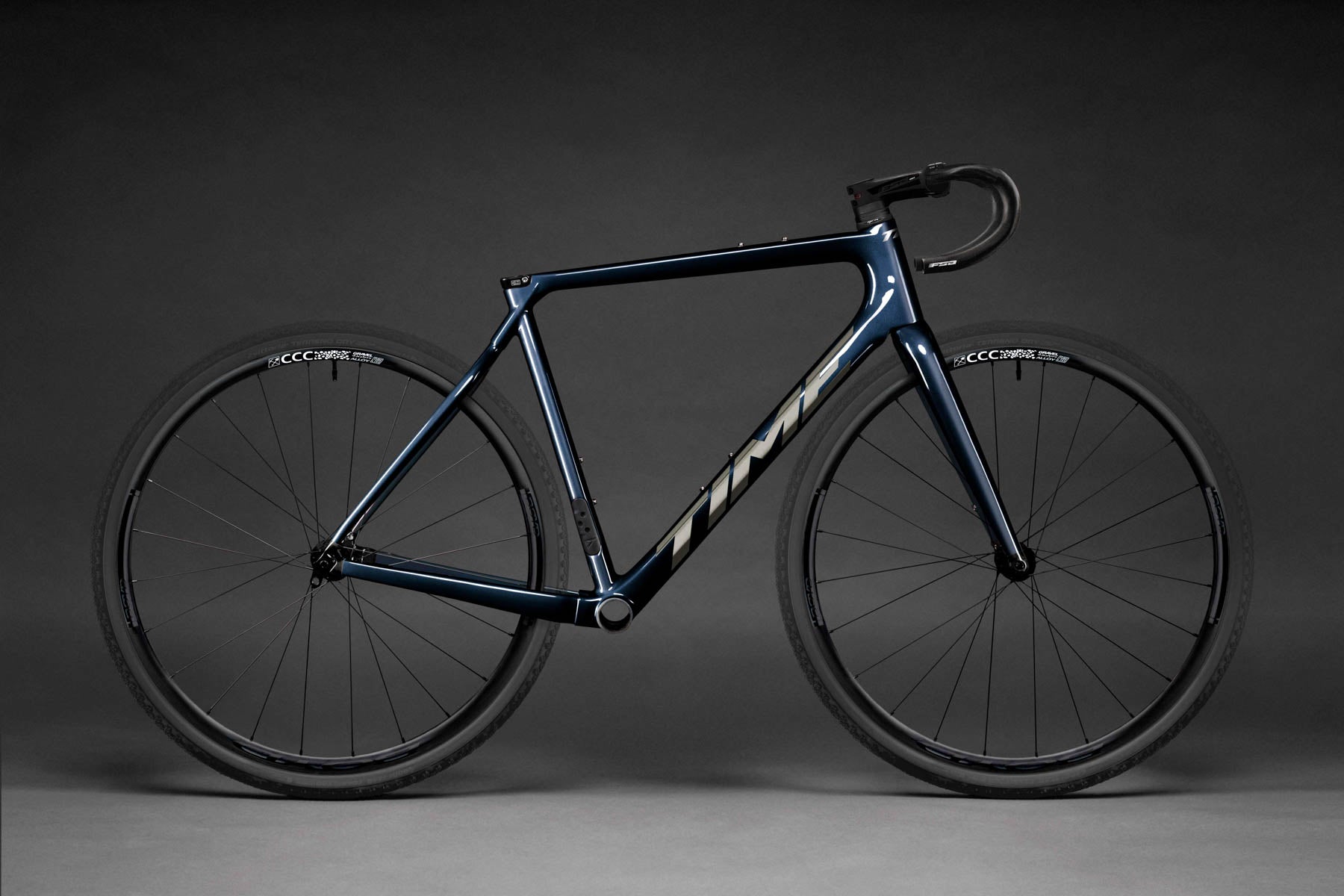

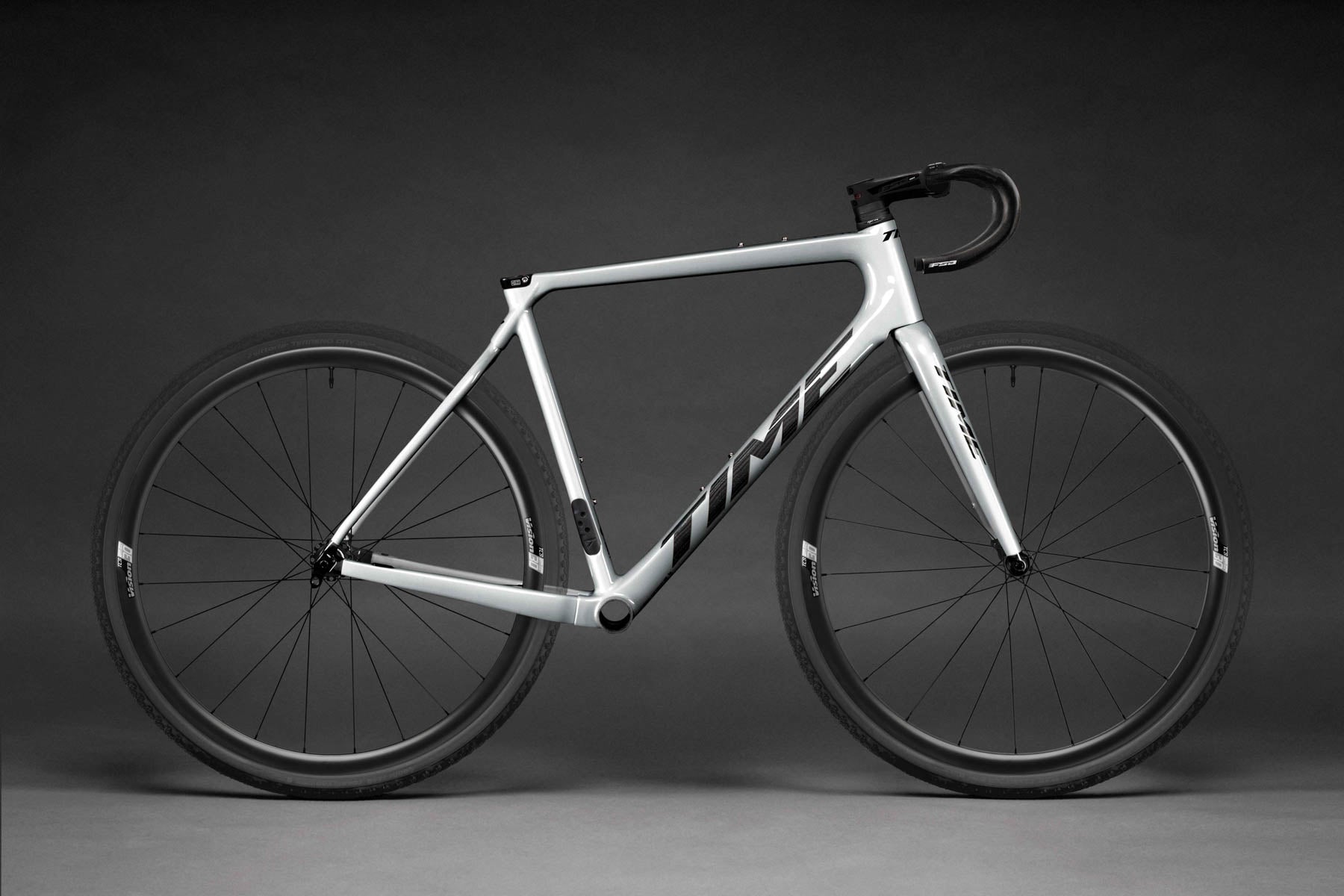

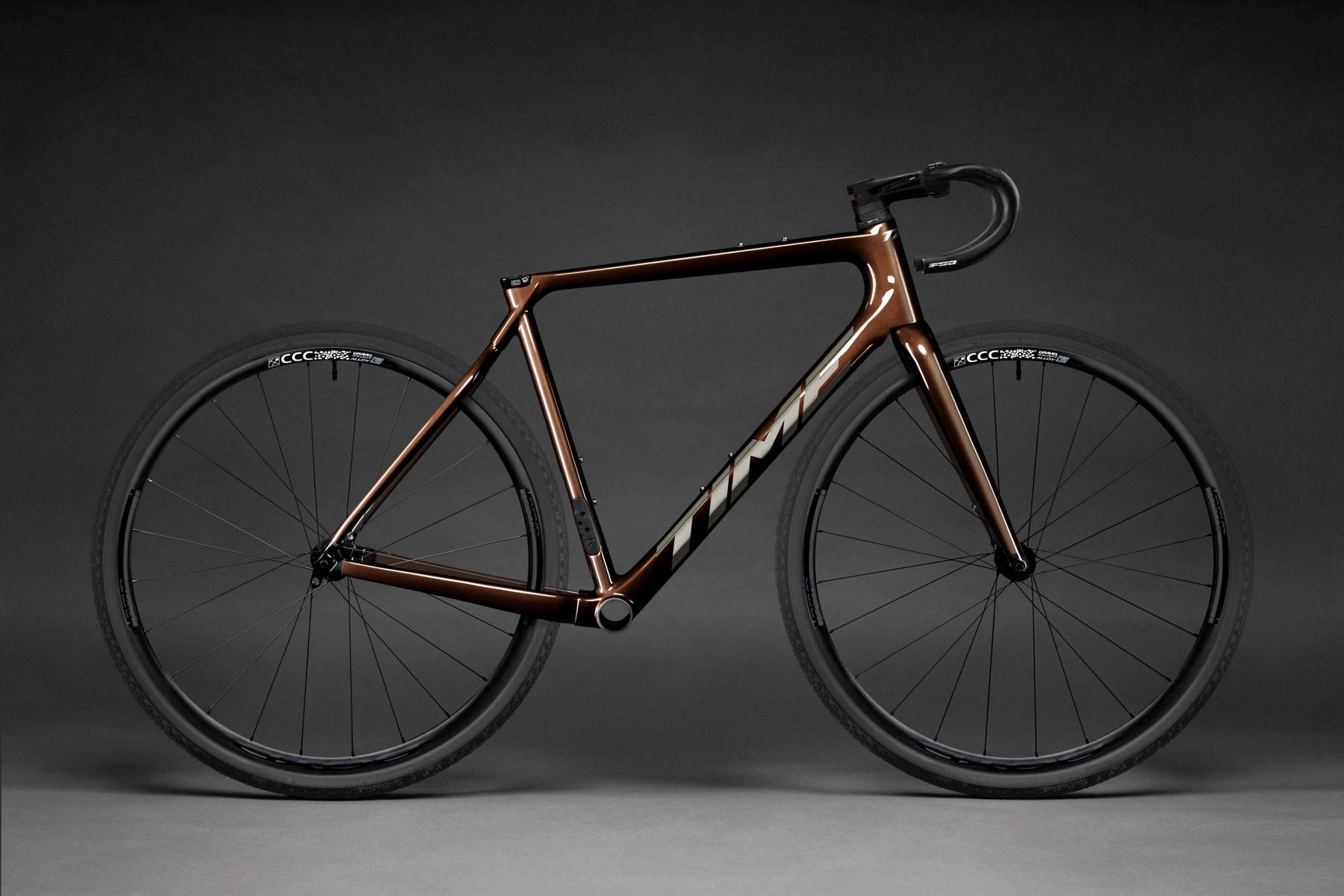

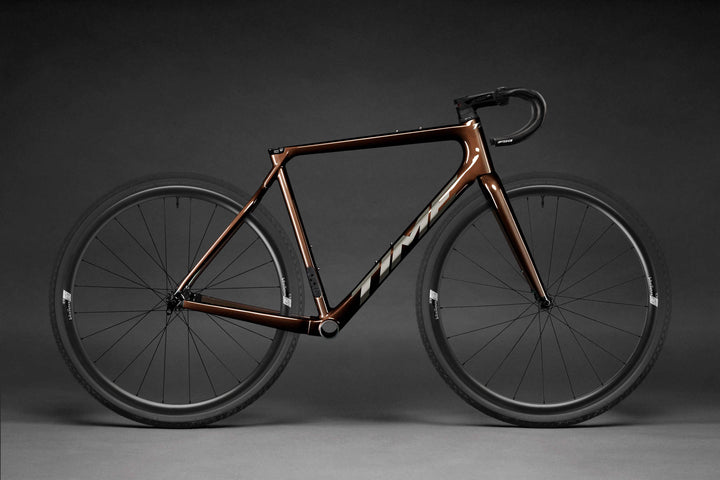

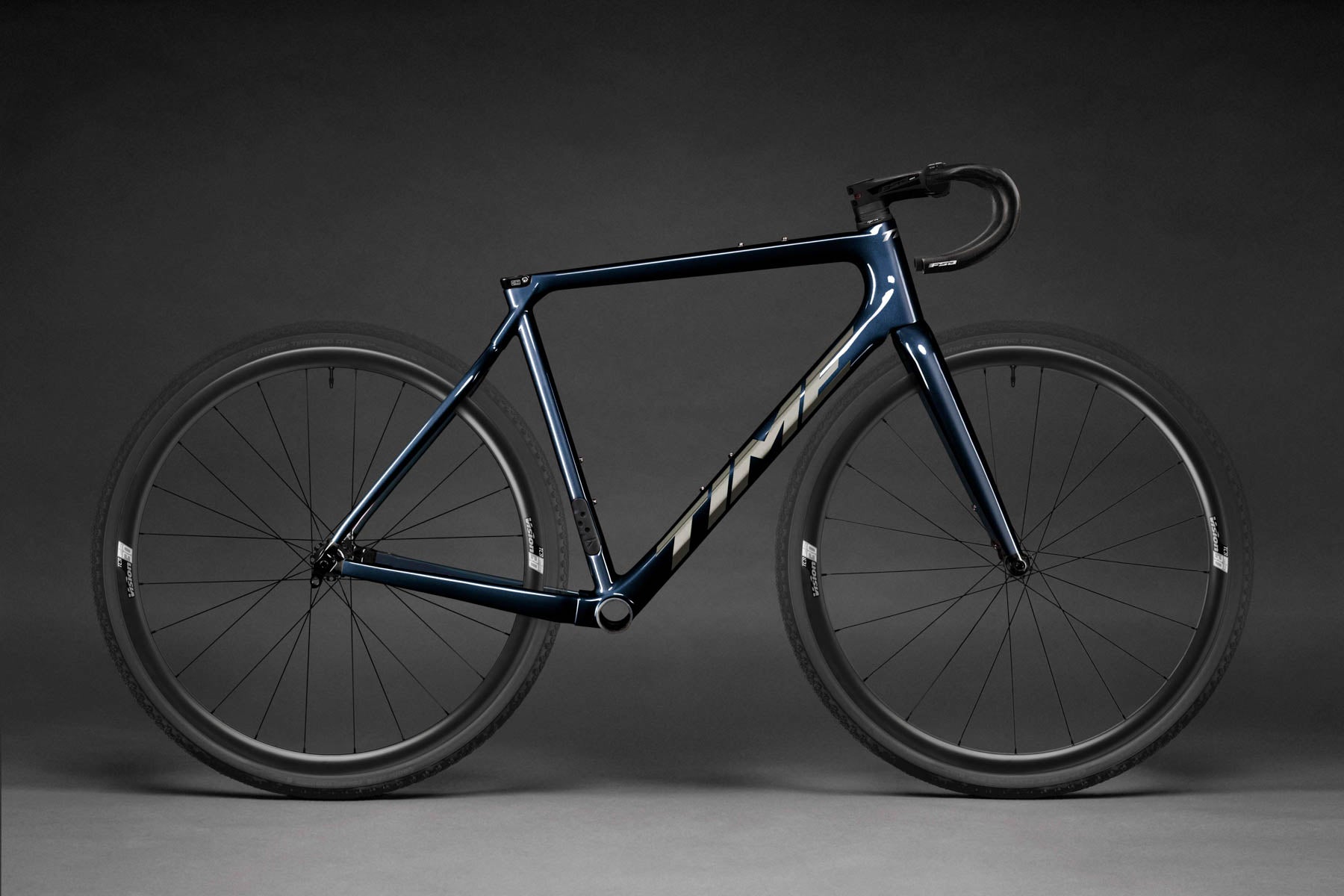

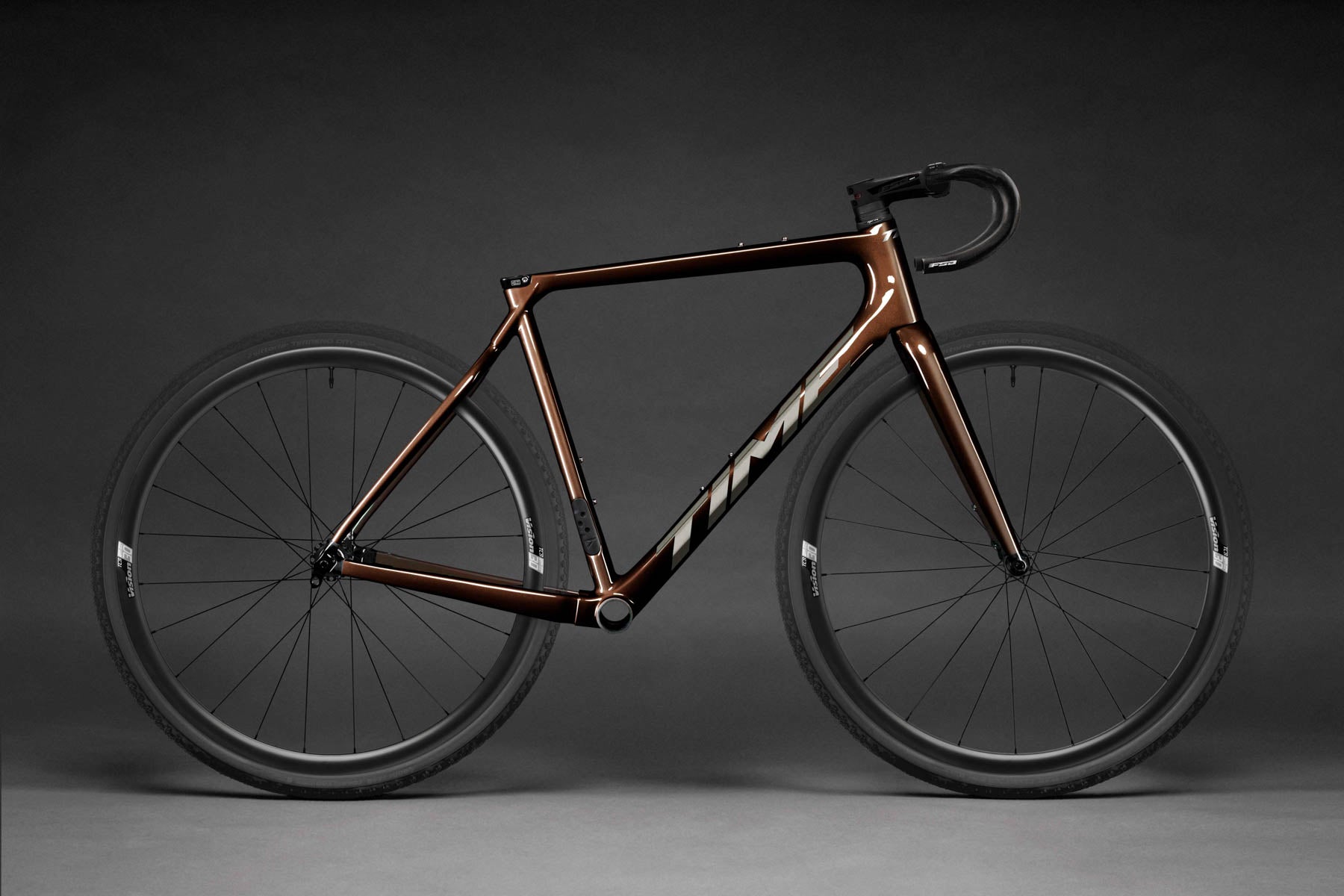

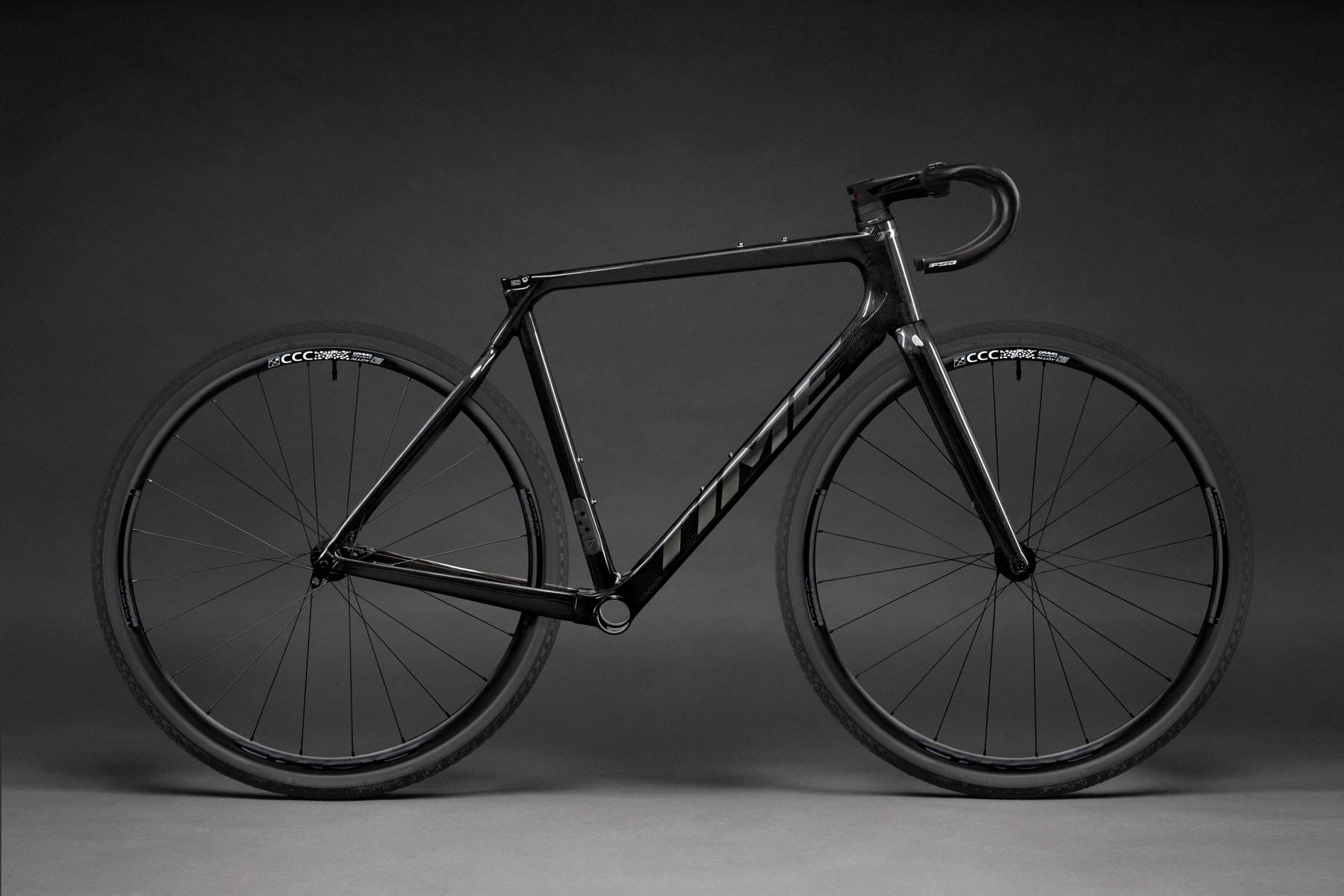

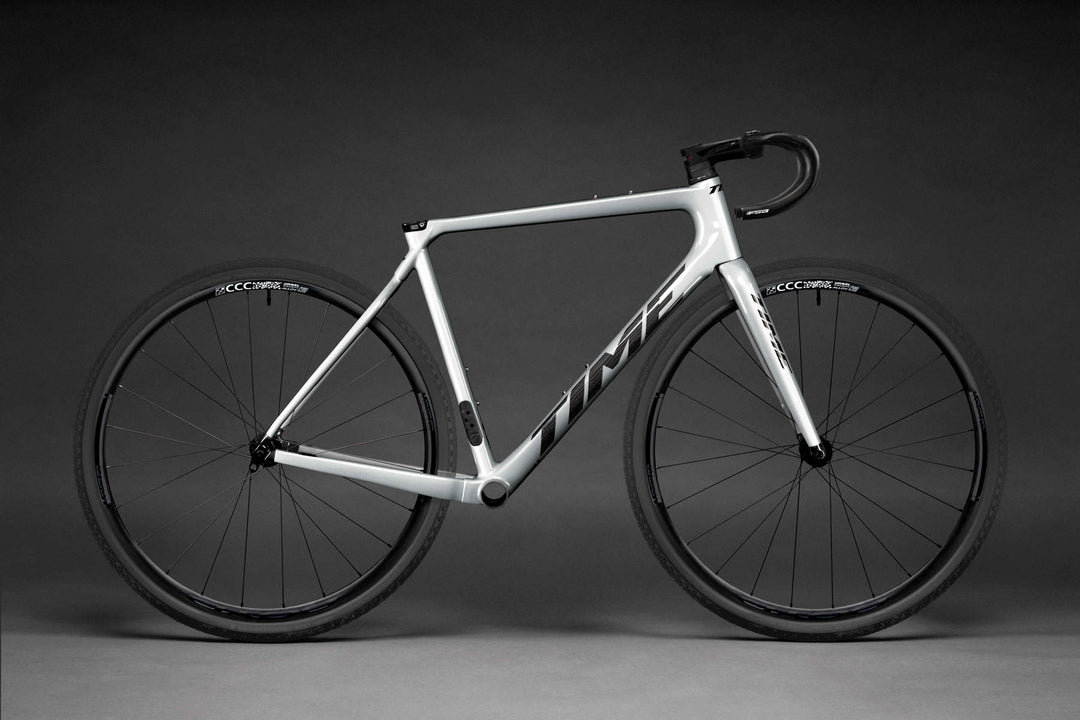

ADHX 45 Rolling Chassis

The ADHX 45 Rolling Chassis offers a premium starting point to build your dream bike, combining cutting-edge performance with personalized options. Each chassis includes your choice of wheelset, seatpost, and cockpit, allowing for a tailored fit and ride experience.

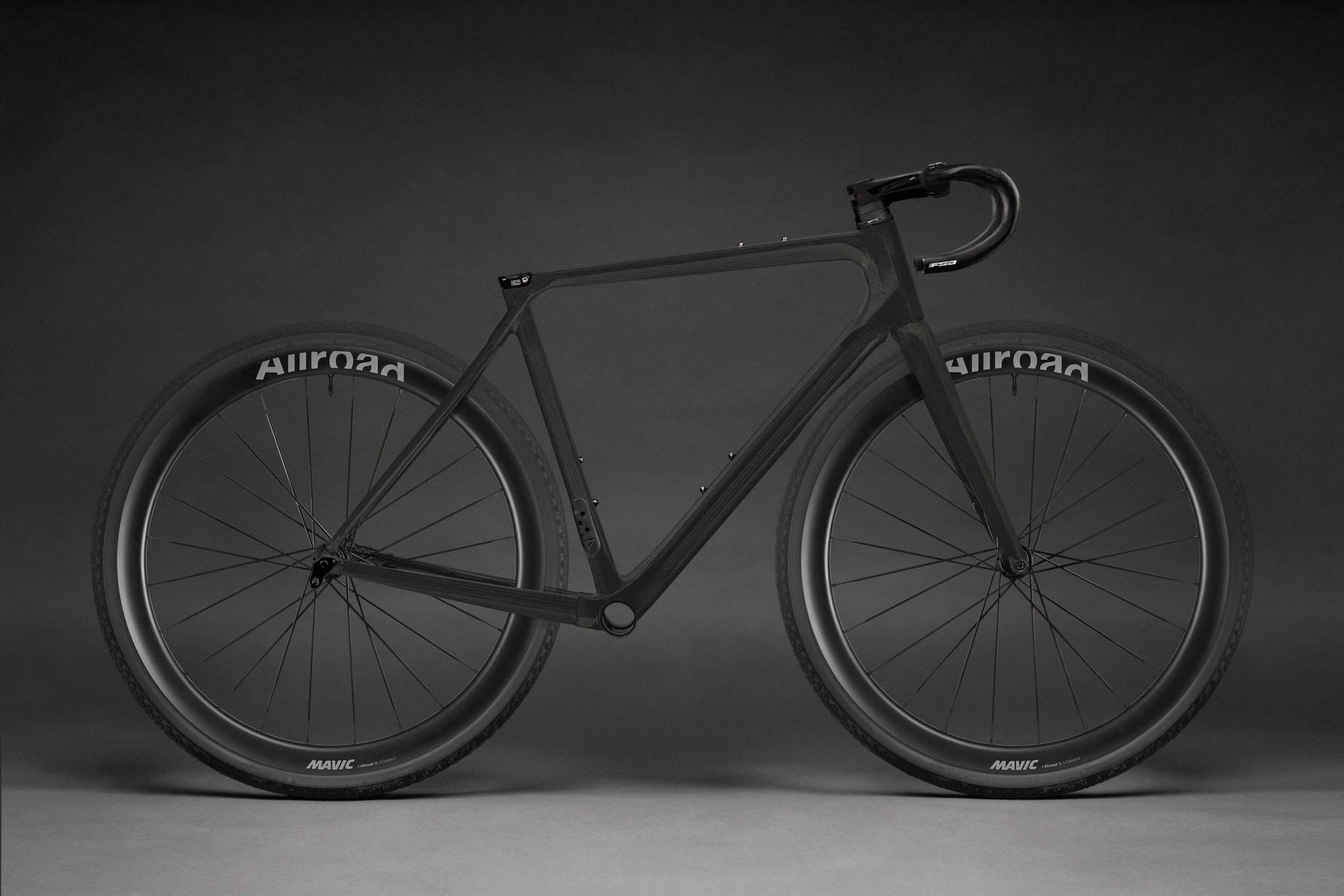

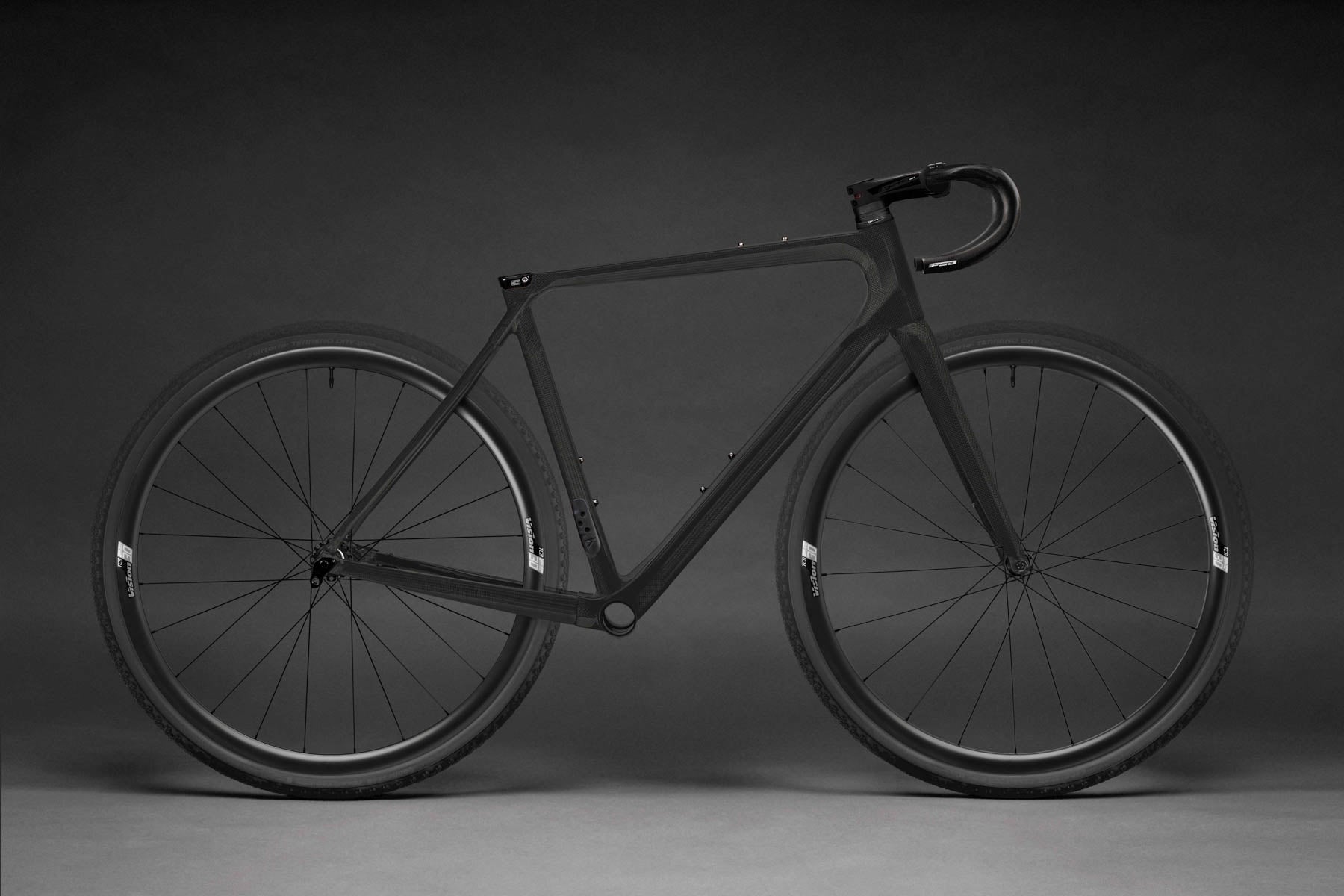

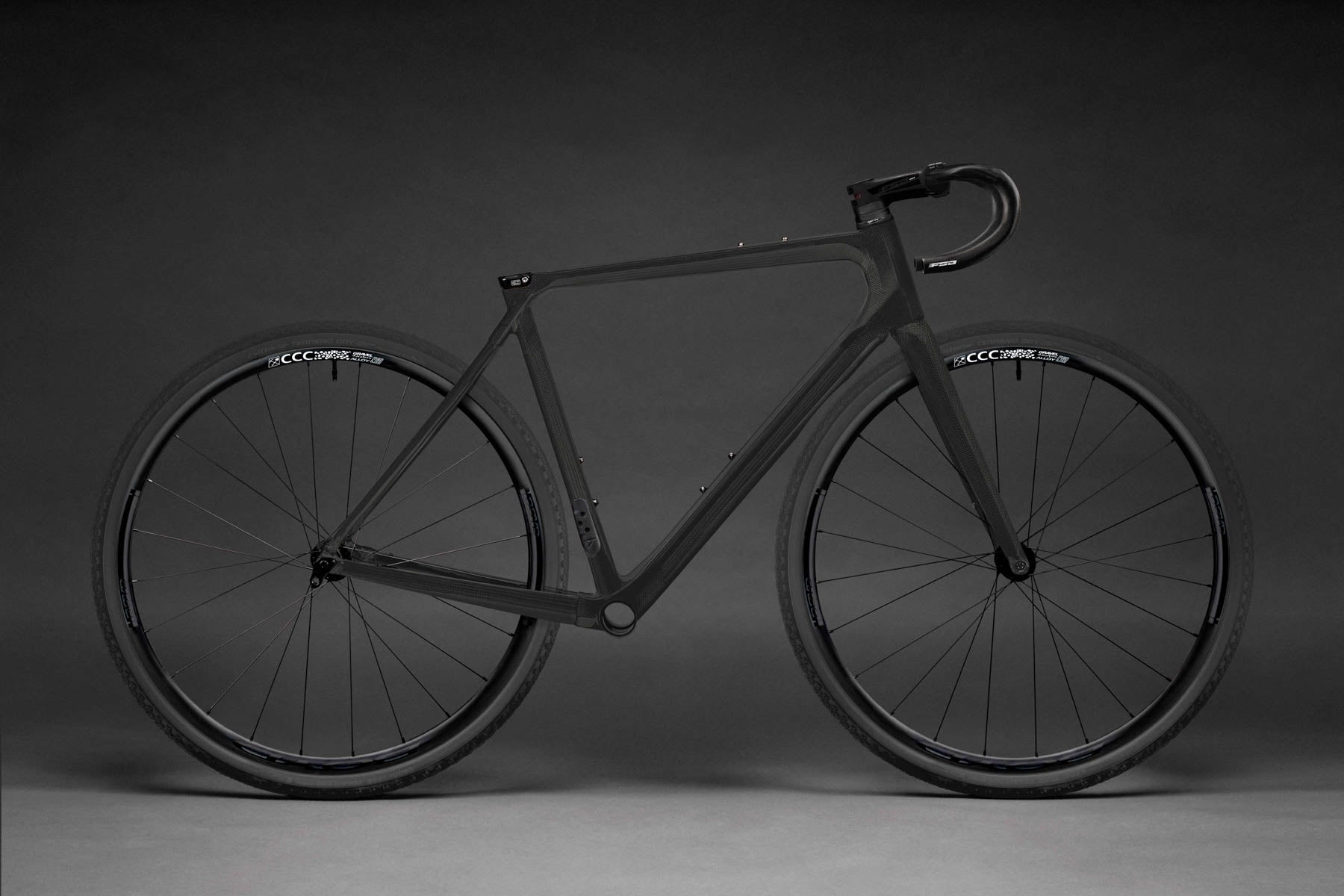

Ready to Paint

TIME framesets can be purchased unpainted in a prepped and sanded condition and with all hardware. Deliver the Ready to Paint frameset to the paint shop of your choice to create the TIME of your dreams!

Size
Color
Wheelset
  • Worldwide Shipping
  • Hassle-Free Returns
  • 100% Secure Checkout
  • TIME Lifetime Warranty
  • Responsive Customer Support
ADHX 45  ROLLING CHASSIS SPECIFICATIONS

HANDLEBAR


FSA A-Wing AGX
 STEM


FSA SMR II
SIZES
XS, SM, MD, LG, XL		 SEATPOST DIAMETER
ø 27.2mm
THRU AXLES
12x120x1.5mm Pitch Front
12x159x1.5 Pitch Rear		 FORK STEERER TUBE
Tapered 1-1/8" to 1-1/2"
SEATPOST CLAMP
Proprietary ADHX Alloy		 HEADSET BEARINGS
Top and Bottom 1-1/2" (with internal routing compression ring)
SHIFTING
Compatible with Electronic and Standard Shifting Systems		 WHEEL SIZE
700c
FRONT DERAILLEUR
1X and 2X Compatible with Integrated Single Cover and Drivetrain Conversion Kit		 MAXIMUM TIRE WIDTH

700 x 28-38c Road Tires (Slick or File Tread)

700 x 32-35c Cross Tires (Low Profile Knob)

Not all tire/rim combinations fit with adequate clearance - check for appropriate fit
REAR DERAILLEUR
Standard Mount		 BOTTOM BRACKET
PF BB386
BRAKE TYPE
Front and Rear Flat Mount Disc		 DISC HUB STANDARD
12x100mm F, 12x142mm R

ROTOR SIZE
140/160mm with Adapter

WHEELSETS

Choose between the following wheelsets:

VISION SC 30 AGX
MAVIC ALLROAD SL
BOYD CCC ALLOY



WHAT'S INCLUDED


FSA A-Wing AGX Handlebar
FSA SMR Stem
Front and Rear Thru Axles

Alloy Bottle Bolts
Integrated Seatpost Clamp

Front and Rear Derailleur Hangers

Single Cover and Drivetrain Conversion Kit

 FSA Headset for Semi & Fully-Integrated Cockpits

Wheelset of your choice

Geometry
